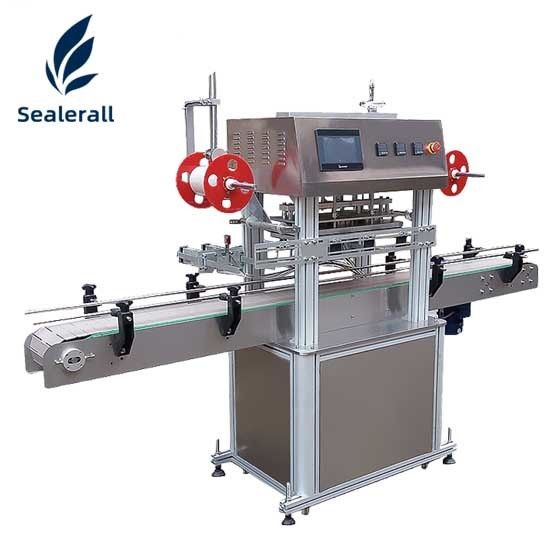

Pneumatic Bottle Sealing Machine 304 Stainless Steel 1000-1200 boxes/hour

This fully automatic sealing machine is designed for versatile packaging applications. Featuring quick-change molds, it accommodates various container shapes including cups, bowls, boxes, bottles, barrels, and cans. The machine offers flexible operation with cost-saving benefits through multi-purpose functionality.

The sealing system works with either roll film or sheet film (plastic composite material), automatically performing punching, sealing, and waste discharge. This solution effectively seals containers without lids, regardless of shape, while optimizing space and production efficiency (capable of sealing 1-4 boxes simultaneously).

• Production Capacity: 1000-1200 boxes/hour
• Sealing Diameter: 30-250mm (customizable)
• Compatible Materials: Plastic composite film, aluminum foil composite film, PP, PVC, PE, PET, PS
• Temperature Range: 0-300°C
• Air Pressure: 4-8KG/CM²
• Power: 1000-2000W (220V)
• Machine Construction: Stainless steel body
• Package Weight: 204kg (custom models may vary)
• Dimensions: 136×111×168cm (packed in wooden crate)

• Six-out-of-one production configuration
• Program-controlled operation for reliability
• 7-inch color touch screen interface
• Precision guide rail system for smooth operation
• Taiwan photoelectric eye tracking system
• Digital temperature control (±5°C accuracy)
• Dual safety electronic grating protection
• Anti-pinch safety mechanism

• Always connect the grounding wire before operation
• Keep hands clear during machine operation
• Use emergency stop button (red) when needed
• Power off when installing sealing film
• Gradually increase temperature for initial sealing
• Ensure level placement on solid surface
• Regularly lubricate guide columns
• Maintain daily cleaning, especially conveyor and motor areas
• Contact authorized service for electrical issues

Payment Terms: 50% deposit upon contract signing, balance due after inspection (on-site or via video confirmation).

Production Lead Time: 7-10 days

Warranty: 1-year guarantee with lifetime service support
